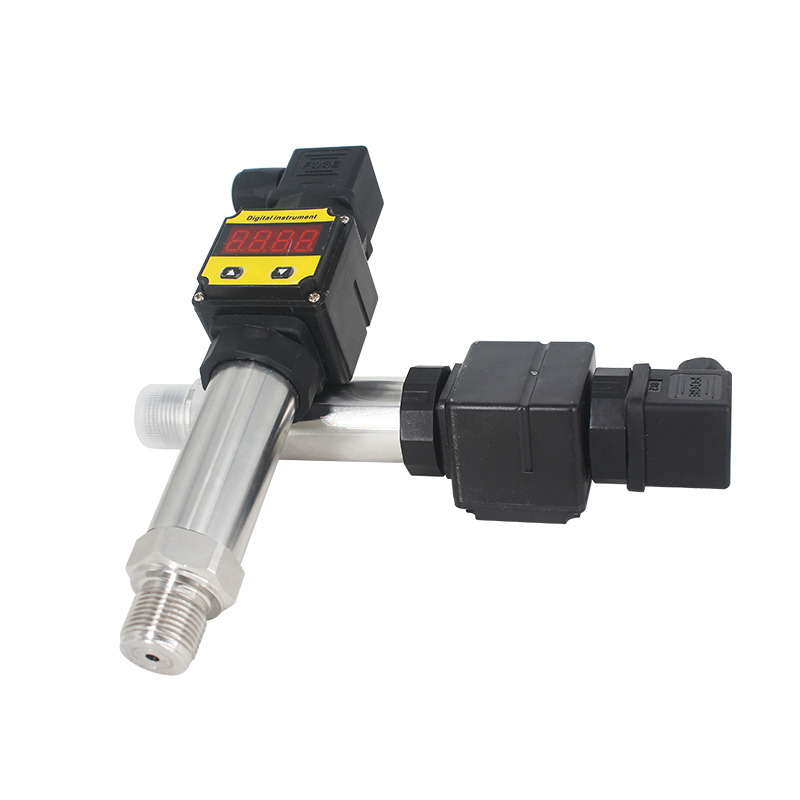

Name: QDX50 Output 4-20mA Measurement Difference Transmitter 10bar Pneumatic Pressure Digital Pressure Transmitter
Brand: QDX50 Output 4-20mA Measurement Difference Transmitter 10bar Pneumatic Pressure Digital Pressure Transmitter
SKU: QDX50
Price: 37.00 USD
Availability: InStock
Rating: 4.8 (168 reviews)

QDX50 Output 4-20mA Measurement Difference Transmitter 10bar Pneumatic Pressure Digital Pressure Transmitter

1 Piece

MOQ

$37.00(1 - 49 Pieces) $35.00(50 - 149 Pieces) $32.00(150 - 299 Pieces) $28.00(>=300 Pieces)

prezzo

Caratteristiche Galleria Descrizione di prodotto Richieda una citazione

Caratteristiche

Specificazioni

Model Number: QDX50

Product Name: Pressure Transmitter

Pressure range: -0.1~0~100MPa

Output signal: 4-20mA/0-5V/0-10V/1-5V,RS485

Power supply: 12~30VDC

Accuracy: 0.5%FS;0.2%FS

Certificates: CE,FCC,ROHS,ISO

Process connection: M20X1.5 Male, Customized

Informazioni di base

Certificazione: CE,FCC,ROHS,ISO

Model Number: QDX50

Termini di pagamento e spedizione

Packaging Details: Each unit has original individual box,all boxes are packed in standard packages.

Descrizione di prodotto

4-20mA output gauge pneumatic differential pressure transmitter 10bar digital pressure transmitter

Product Description

<1>. Pessure transmitter has been specially designed to cover the majority of industrial applications where need high accuracy measurement.
<2>. QDX50 pressure transmitter is made of stainless steel, the pressure sensing elements are selected from good suppliers. Special circuits are adopted to asjust zero and full range conveniently.

<3>. This pressure transducer has been approved with CE,FCC,ROHS,ISO certificates, and explosion-proof certificate.
<4>. Customized structure and outputs formats can be designed according to special application requirement, in addition to standard products.

Technical Parameters

Measure media	Gas, water, oil or other media can be compated with stainless
Pressuretype	Gauge; Absolute; Negative, Sealed gauge pressure
Pressure range	-0.1~0~100Mpa
Power supply	DC12~36V (DC24V)
Output signal	4~20mA,1~5V,0~5V,0~10V,RS485,etc
Accuracy	0.5% F.S(Default); 0.2% F.S
Response time	≤8mS
Overload pressure	200% F.S.
Ambient temperature	-40~85℃
Compensation temperature	-10~70℃
Protection grade	IP65
Long-term stability	Standard: 0.2%F.S±0.05%
Zero temperature drift	0.03%FS/°C(≤100kPa), 0.02%FS/°C(>100kPa)
FS temperature drift	0.003%FS/°C(≤100kPa), 0.002%FS/°C(>100kPa)
Natural frequency	5KHz~650KHz
Thread size	M20*1.5(Default), Customization

Selling Points

Wiring Diagram

Product Dimension

Product Application

Certifications
