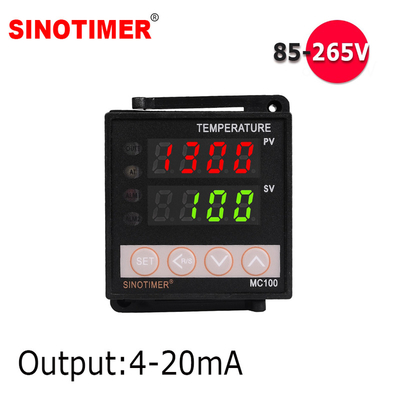

universal analog output 4-20mA thermocouple PT100 input Digital PID temperature controller thermostat for cool heat with alarm MC100*4-20mAOut

1 Piece
MOQ
universal analog output 4-20mA thermocouple PT100 input Digital PID temperature controller thermostat for cool heat with alarm MC100*4-20mAOut
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Model Number: MC100*4-20mAOut
Product name: Digital Temperature Controller
Power supply: 85~265VAC 50/60Hz
Display: LCD Digital Display
Input: Universal Input
Output: 4-20mA analog
Measuring Range: 0~1300℃
Resolution: 1°C
Control mode: PID, On-Off
Dimensions: 48*48*110mm
Certificate: CE RoHS EMC LVD
Informazioni di base
Certificazione: CE RoHS EMC LVD
Model Number: MC100*4-20mAOut
Termini di pagamento e spedizione
Packaging Details: 1 inner recycled carton box
Descrizione di prodotto
Product Description

Product Features:


1. Dual display for both set temperature and process temperature

2. Size, 48*48mm

3. Universal input, support 10 different types of thermocouples and RTD inputs by customers selected at panels.

4. Uses it in Heating Control as well as for Cooling control

5. Auto-tune function can find the best PID parameter automatically

6. Displays temperature in Celsius (degC)

7. Four digits LED display can go up to "9999

8. Uses it for Kiln,Furnace,Oven,Incubator temperature contro

9. It is used in various industries to control and monitor process temperatures

Model number
MC100*4-20mAOut
Size
DIN 1/16, 48*48mm
Power supply
85~265VAC  50/60Hz
Control mode
PID
Input
TC: K, E, S, R, J, T, B, WRe3-WRe25.
RTD: Pt100, Cu50
Output
4-20mA Analog
Display
Two lines, Four digits. °C.
Resolution
1°C
Accuracy
±0.5% or ±1 unit of full input range
Alarm
Upper-limit bias alarm
Power consumption
<2 Watt
