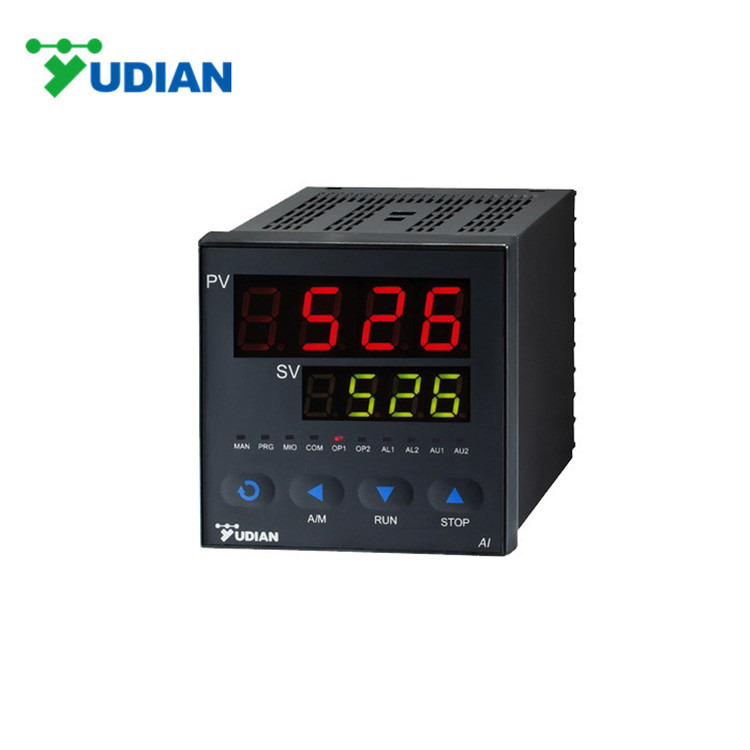

Name: High accuracy yudian digital led display controller PID temperature control AI-526 supplier
Brand: High accuracy yudian digital led display controller PID temperature control AI-526 supplier
SKU: AI-526
Price: 1 USD
Availability: InStock
Rating: 4.8 (112 reviews)

Caratteristiche Galleria Descrizione di prodotto Richieda una citazione

Caratteristiche

Specificazioni

Model Number: AI-526

Usage: Industrial

Theory: Temperature controller

Accuracy: 0.25% FS

Temperature range: -1999-3200

Power supply: AC/DC 85~260V (50/60Hz) 24VDC

Certificate: ROHS CE CQC MEQ

Input: K S J E T E PT100 CU50 4-20mA 0-5v 1-5V

Output: 4-20mA 0-20mA SSR K1 K3

Size: 160*80 80*16072*72 48*48 96* 96 48*96

Display: Dual Led Display

Application: Temperature controll

Resolution: 0.1 C/0.1 0.001

Power Consumption: Less than5W

Product name: pid temperature controller pid temperature instruments price

Informazioni di base

Certificazione: ROHS CE CQC MEQ

Model Number: AI-526

Termini di pagamento e spedizione

Packaging Details: Standard export carton

Supply Ability: 2000 Piece/Pieces per Day

Descrizione di prodotto

High accuracy pid temperature controller pid temperature instruments price

Applicable for accurate controls of Temperature, Pressure, Flow, Level and Humidity etc.

1.Main features

Yudian AI-526 controller PID, high accuracy, high quality controllers offer unparalleled flexibility in process control. Each controller pid allows the user to select the input type, from 10 thermocouple types (J, K, T, E, R, S, B, C, N and J DIN), Pt RTD's (100, 500 or 1000 ohm, with either 385 or 392 curve), or analog voltage or current input. The voltage/current inputs are fully scalable to engineering units, with selectable decimal point, perfect for use with pressure, flow or other process input.

2. Control Mode

On-off control mode
PID Control with Auto Tuning function(AT)

3.Dimension

SIZE	Front Panel Width×Height	Cut Out Width×Height	Depth Behind	Light Bar
A(A2)	96×96 mm	92×92 mm	100MM	A2 added 25 segments and 4 levels
B	160×80 mm	152×76 mm	100MM
C(C3)	80×160 mm	76×152 mm	100MM	C3 added 25 segments and 4 levels
D	72×72 mm	68×68 mm	95MM
D2	48×48 mm	45×45 mm	95MM
E(E2)	48×96 mm	45×92 mm	100MM	E2 added 25 segments and 4 levels
F	96×48 mm	92×45 mm	100MM
E5	48×96 mm	45×92 mm	100MM

3.Input Signals

4.Other Technical Specification

Measurement accuracy	0.25%FS ± 1
Resolution	PT100, K: 0.01°C; others: 0.1 °C Linear signals:0.01
Response time	≤0.3s ( when digital filter parameter dL=0)
Output (modularized)	Relay output (NO+NC): 250VAC/2A or 30VDC/1A
	TRIAC phase shift Output
	TRIAC zero Crossing trigger output
	SSR Voltage output: 12VDC/30mA (used to drive SSR)
	Linear current output: 0~20mA, 4~20mA
General specifications	Voltage: support AC85-265V, 50/60Hz or DC24V.
	Power consumption: ≤3W
	Electromagnetic compatibility (EMC) : ±4KV/5KHz according to IEC61000-4-4; 4KV according to IEC61000-4-5.
	Operating Ambient : temperature -10~60°C; humidity ≤90%RH
Optional function	1~4 alarms, RS485 communication

Ordering Code

Digital pid temperature controller displys

WHY CHOOSE YUDIAN

1) Factory with 25 years experience.

2) Quick delivery ( within 3~5 working days).

3) Retail/Wholesale/OEM/ODM available .

We expect to cooperate with machinery manufacturers,

better price for bulk order.

4)We provide after sales service and technical assistance as per the

customers requirement and needs.

YOU WILL GET

1) A piece of digital pid temperature controller ;

2) A paper of user manual;

3) One-year/ 3-year warranty card and Quality Approval card;

4) A lable of units;

5) A pair of installaton brackets;

6) Nice package carton box with Yudian logo.

FAQ

1. How long will you give me the reply?

we will contact you as soon as possible
2. Could I get samples of controller pid ?

Yes,we have products in stock ,so you can get the samples quickly.
3. How about the quality of controller pid?

We have the certification of ISO,CE and ROSH,we could send the certification test of our company to you.
4. Could I visit your factory?
Of course,if you need we will help you to visit our factory.
5. If I have paid,when will you help me to produce?
We will start producing immediately after receiving the payment.
